BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester

BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester
BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester

Large Image :  BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: BS476-7
Model Number: DX8299
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 sets per month

BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester

Description
Packing Size: 3000*2000*2000mm Gross Weight: 800kg
Product Name: Flammability Testing Equipment Standard: BS476-7
Power Supply: 380V Display: Digital
High Light:

vertical flammability chamber

,

horizontal flammability tester

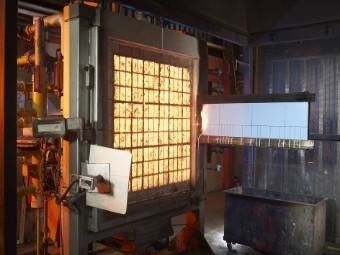

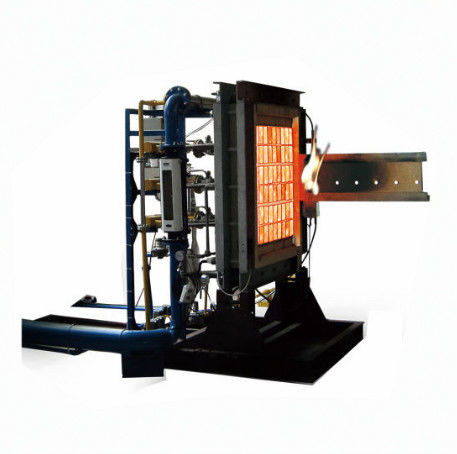

BS476-7 Building Material Flame Surface Radiation Heat Spread Classification Tester

BS476-7 Application:
Determine The Classification of The Surface Spread, The extension of the flame which on the exposed surface of the wall and ceiling. The test method is through the gradual change of the radiation heat, with small flame to ignite samples, and determination of the critical heat flux.


BS476-7 Standards:
BS476-7


BS476-7 Parameters:



Loading Method Flame Surface Spread Classification Tester
Control Computer Control
Weight 500-1000Kg
Power Source AC380V
Features Computer Automatically Processes The Data
Packing Size 3000*2000*2000mm
Gross Weight 800kg


BS476-7 Features:

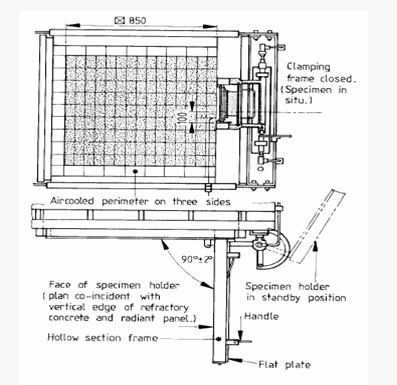

The area of the radiant panel is 850mm×850mm, strengthen the structural support frame.

  1. Sample holder is perpendicular to the radiant panel with standard scale mark, it can according to the distance of the flame propagation to calculate the critical heat flux.
  2. Equipped with water cooling circulation system, which can be carried out to the specimen holder, and avoid high temperature cause damage for a long time.

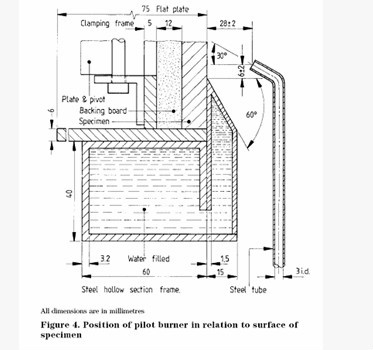

  3. Equipped with small flame ignition device, use the electric to ignition.
  4. The radiant panel equipped with flame test device, if the radiant panel flame out, it can cut off the gas automatically.
  5. Equipped with electric control box, which can adjustable gas and air flow, and show the value of the heat flux.
  6. Equipped with water cooling heat flux sensor.
  7. PLC+ HIM, can display the information of the test.

BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester 0



EN 13501-1 Fire Classification of Building Products and Components - Relevant Reference Standards:


- EN 13823: Fire Test of Building Products, Single Combustion Project under Thermal Shock of Building Products (floor materials)
- EN ISO 1182 fire test of building products, non-combustible test
- EN ISO 1716: Fire test of building products, Determination of calorific value of combustion
- EN ISO 9239-1 Fire test of floor materials Part 1: Determination of combustion performance using radiant heat sources
- EN ISO 11925-2: Fire tests. Flammability of construction products subjected to flames. Part 2: Single ignition source test


About daxian company:


DAXIAN's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, LED, photoelectricity, mobile, plasticand rubber, telecommunication, chemical industry, aerospace, building material and product, wire and cable,textile and fabrix, etc. All DAXIAN testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.


BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester 1

One-stop logistics:


The equipment is placed in the wooden box, covered with bubble film, with good shock absorption, impact resistance, heat sealing, and has the advantages of non-toxic, odorless, moisture corrosion resistance, transparency.One-stop comprehensive service to let you rest assured.


BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester 2
