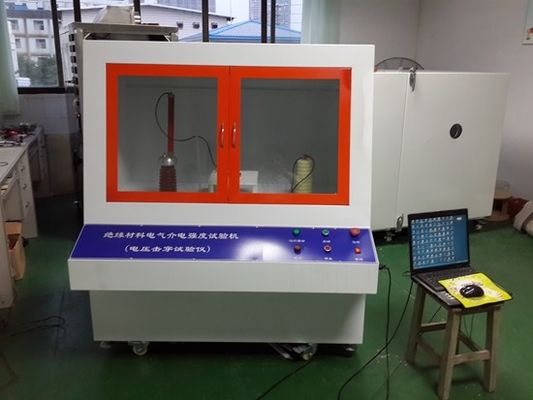

50KV IEC 60243 ASTM D149 Voltage Breakdown Tester , Solid Isulation Material Withstand Voltage Testing Machine

Large Image : 50KV IEC 60243 ASTM D149 Voltage Breakdown Tester , Solid Isulation Material Withstand Voltage Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	DAXIAN
Certification:	CE, SGS, ISO
Model Number:	DX8388

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case
Delivery Time:	30 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	30 sets per month

Contact Now

50KV IEC 60243 ASTM D149 Voltage Breakdown Tester , Solid Isulation Material Withstand Voltage Testing Machine

Description

Breakdown Voltage:	0~50kV	Applicable:	Insulating Materials
Booting Speed:	100,200,500,1000,2000,5000（KV/S）	Accuracy:	≤ 2％
Methods Of Test:	DC & AC	Weight:	200kg
Dimension:	L1400* W1040* H1500 Mm	Transformer Capacity:	10 KVA
Highlight:	melt flow index tester , plastic film testing equipment

IEC 60243 ASTM D149 Voltage Breakdown Tester, Solid Isulation Material Withstand Voltage Testing Machine

Application

Apply to continuous uniform boosting or step by step boosting way, step by step toward a sample breakdown, ac/dc voltage until the breakdown voltage measurement, calculation of the sample breakdown strength.

Definitions:

Breakdown Voltage: Sample under a certain voltage is punctured, at this time of voltage named breakdown voltage, expressed as a kV.

Voltage Resistance Value: Quickly to keep the voltage to the specified value, sample time is not breakdown, according to the voltage value of withstanding voltage value of the sample, expressed as a kV.

Breakdown Strength: The ratio of the sample breakdown voltage and its thickness named breakdown strength, expressed a KV/mm.

Specifications:

Breakdown voltage	0~50kV
Booting speed	100,200,500,1000,2000,5000(KV/S)
Booting speed control	Electrical automatic control
Voltage measurement accuracy	≤ 2％
The leakage current selection	1~100 mA
Methods of test	DC & AC
Methods of booting	Automatic program-controlled
Power Frequency	sine wave 50Hz/60HZ
Supply power	AC220V 50/60Hz
Dimension	L 1400* W 1040* H 1500 mm
Weight	200kg
Transformer capacity	10 KVA
AC 0~50 KV (continuously adjustable)

50KV IEC 60243 ASTM D149 Voltage Breakdown Tester , Solid Isulation Material Withstand Voltage Testing Machine 0

50KV IEC 60243 ASTM D149 Voltage Breakdown Tester , Solid Isulation Material Withstand Voltage Testing Machine 1
