Product Details:
|
Temp Precison: | ±1°C | Spray Volume: | 0.5~3.0 |
---|---|---|---|
Spray Qutantity: | 1.0~2.0 Ml / 80cm2 / Hr | Standards: | CNS, JIS, K5400, Z2371, ASTM |
Temperature Range: | 35°C~55°C | Fluctuations: | ≤±0.5°C |
Highlight: | high temperature test chamber,salt spray corrosion test chamber |

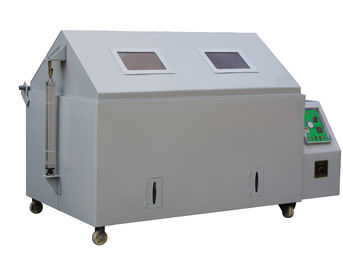

Temperature Control Salt Spray Fog Corrosion Test Environment Chamber for Plastic Products
Product Description:
Through the examination of the material and its ability to salt spray corrosion protective layer, and a protective layer similar process quality compared to the same time assess the ability of certain product resistance to salt spray corrosion; this product is suitable for parts and components, electronic element, protective layer, and salt spray corrosion testing of industrial products, metal materials.
Features:
1.Automatic add water when water shortage, with a group of manually water
2.Special glass nozzle, guarantee non-crystalline block for 4000 hours
3.With dual over-temperature protection, water shortage warning, ensure safety use
4.Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
5.Chamber adopts direct steam heating method, fast warming, shortening standby time
6.Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.
Main technical parameters:
Inner box size: (L×W×H) cm |
60×40×45 | 90×60×50 | 120×100×50 |
Outside box size: (L×W×H)cm |
107×60×118 | 141×88×128 | 190×130×140 |
Equipment material: | Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. | ||
Temperature range: | 35°C~55°C | ||
Temperature fluctuations: | ≤±0.5°C | ||
Temperature uniformity: | ≤±2°C | ||
Temperature precision: | ±1°C | ||
Test chamber temperature | NSS ACSS 35±1°C CASS:50±1°C | ||
Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
Brine temperature: | 35°C±1°C | ||
Spray quantity: | 1.0~2.0 ml / 80cm2 /hr | ||
PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | ||
Lab volume: | 108L | 270L | 600L |
Brine tank capacity: | 15L | 25L | 40L |
Power: | 1AC220V,10A | 1AC220V,15A | AC 1,220V,30A |
Multiple safety protection devices: | Water shortage/ over temperature / phase protection | ||
Standard accessories: | Test salt, measure bucket, tool etc 1 set |
