Force Testing Machine

China Force Testing Machine supplier
Force Testing Machine supplier

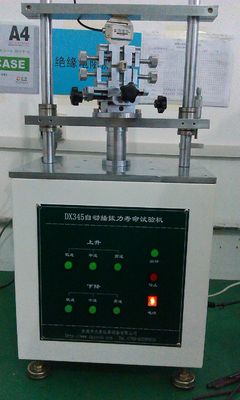

Large Image :  Force Testing Machine

Product Details:

Place of Origin: China
Brand Name: DAXIAN
Certification: CE
Model Number: DX8345A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Maximum Travel: 150mm (without Clamps) Speed Adjustment: 25~300mm/min Adjustable
Measuring Range: 10, 20, 30, 50kg Optional Control Stroke: 0~25mm

Microcomputer Control Automatic Insertion and Extraction Force Testing Machine



Scope of application:

It is mainly used to test the insertion force and pullout force of various connectors. The intensity of processing using a microcomputer board, with peak hold function, high display accuracy, stable readings.



Main features:

It has continuous plugging and unplugging function; the number of plugging and unplugging can be arbitrarily set, that is, it will automatically stop after reaching the set number of times; the inserting part has a fool-proof function, which can avoid artificial damage to the sensor and the connector.

The transmission mechanism adopts no-noise gears, operates at a uniform speed, and has no noise. The fixtures are universal fixtures and are suitable for different connectors. Can also be used for connector plug life test.



Technical Parameters:

Maximum travel: 150mm (without clamps).

Speed ​​adjustment: frequency control, 25~300mm/min adjustable, digital display

Count: 99999, arbitrarily set, LED digital display.

Measuring range: 10, 20, 30, 50kg optional

Insertion/extraction force Resolution: 0.01kg

Displacement: with displacement control

Control accuracy: 0.01mm

Control stroke: 0~25mm

Inch: Rise, stop, and fall X, Y axis, phase adjustment X, Y axis adjustment

Range: 0~15mm

Resolution: 0.01mm

Phase adjustment range: 0~360
