Large Image :  Insulation Materials IEC Tracking Test Equipment AC DC Switchable

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: CE
Model Number: DX8427
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month

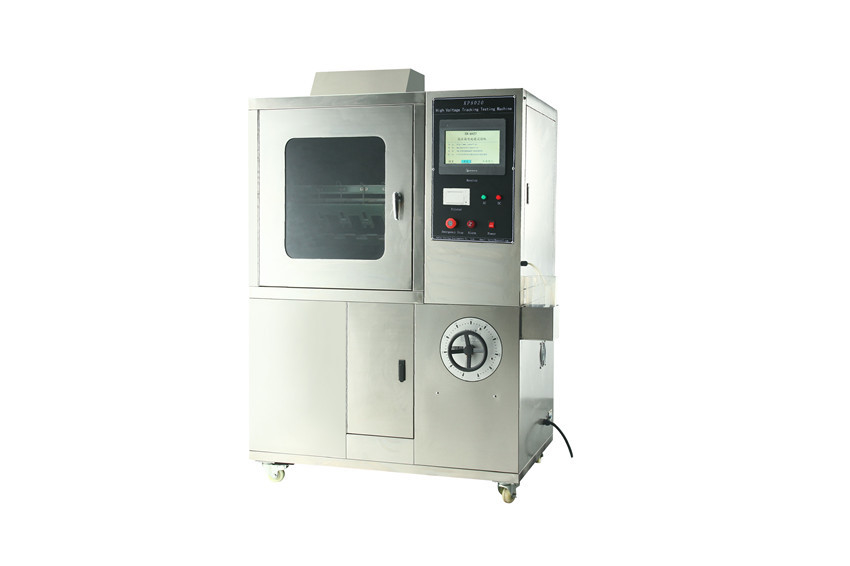

Insulation Materials IEC Tracking Test Equipment AC DC Switchable

Description
Product Name: IEC Tracking Testing Equipment Standard: IEC60587, ASTMD 2303
Output Voltage: AC/DC (switchable) Test Voltage: 100V-6000V Stepless Adjustable
Test Time: 6 Hours Warranty: 12 Months
High Light:

6000V Tracking Test Equipment

,

Stepless Tracking Test Equipment

,

IEC Rubber Testing Equipment

IEC60587 Anti-Tracking Measuring Device



1. Purpose:


The high-voltage leakage marking tester is applicable to the test of electrical and electronic products, household appliances and their materials for resistance to electric marking and corrosion. Under the simulated power frequency (48Hz - 62Hz), liquid pollutants and inclined samples are used to evaluate the resistance to electric marking and corrosion of electrical insulation materials used under severe environmental conditions through the measurement of resistance to electric marking and corrosion. This machine is designed and manufactured in strict accordance with GB / t6553-2014 and iec60587-2007.



2. Standards:



IEC60587,ASTMD2303.



3.Technical parameter:



Dimensions of the instrument 1300L*700W*1800H(mm)
Test time 6 hours
Standard

IEC60587-2007

Number of test groups five groups
