ASTM F2700-08 TPP Test Device , Clothing Flame Resistant Materials Test Equipment

ASTM F2700-08 TPP Test Device , Clothing Flame Resistant Materials Test Equipment

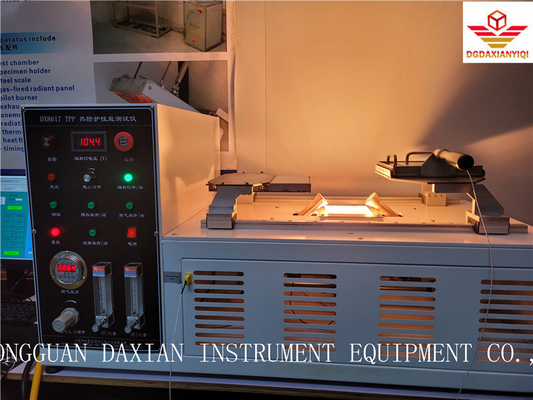

1.TPP Test Device Product introduction:

The TPP Thermal Protective Performance tester is used to measure the insulation performance of flame-resistant protective clothing fabrics exposed to radiant heat sources and convective heat sources. It is used to test the thermal protection performance of protective clothing, safety shoes, gloves, helmets and other outer surfaces. By using the TPP Thermal Protective Performance tester, it is possible to determine if the insulation performance of these items meets the relevant standard requirements.

2.TPP Test Device Standards:

ASTM F2700-08:Standard Test Method for Unsteady-State Heat Transfer Evaluation of Flame Resistant Materials for Clothing with Continuous Heating

3. TPP Test Device Technical specifications:

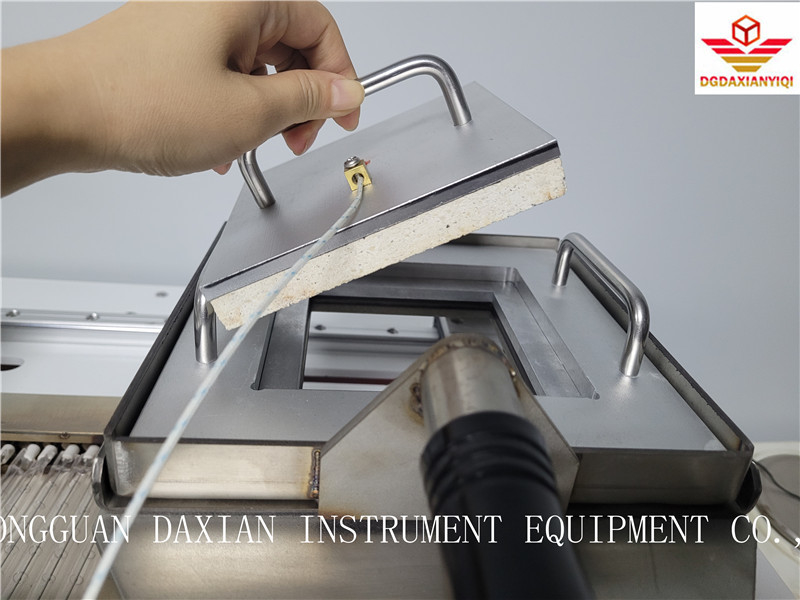

1). Including the sample holder assembly, the bracket for the sample holder assembly, heat source, protective cover, sensor assembly, recorder, and gasket, it should also have air conditioning
Source, gas flow meter, burner, and sensor

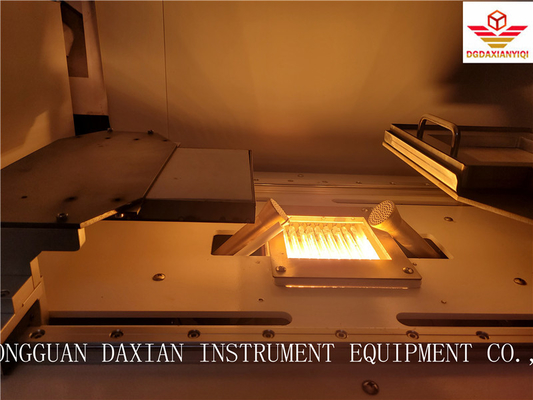

2). Two Meker burners placed at 45 degrees, paired with 9 quartz tubes to provide standard convective heat sources;
3). Nine T150 quartz infrared tube arrays can provide heat with a radiant flux of 13-40 kW/m2 ± 4 kW/m2;
4). Under the thermal radiation of quartz infrared tubes, the total heat flux can be set to 83kW/m2 ± 2 kW/m2 by adjusting the gas supply to the Meker burner;
5). The calibrated heat flow meter is of water-cooled type, with a working range of 0-100KW/m2 and a maximum usage range of 150%;
6). Equipped with a computer and printer, equipped with standard testing software, providing standard testing curves (professional software testing packages: first level and second level burn curves).

4. TPP Test Device Installation requirements:
1. Power supply: AC 220V 50Hz 4000W
2 Environment:+10 ℃~35 ℃, 10~80% RH
3 operations: fume hood or suction hood
4 Air source requirements: Air compressor gas
5 working gas: propane

Welcome to visit our factory for sightseeing!

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
