Product Details:
|
| Power: | 220V/50HZ | Warranty: | 1 Year |
|---|---|---|---|
| Product Name: | Fire Fighting. Portable Fire Extinguishers | Standard: | ISO 7165、GB/T 4351.1-2005 |
| Intake Pressure: | 0.1 ~ 0.2mpa | Station: | 1 |
| High Light: | ISO 7165 Fire Extinguisher Tester,0.2mpa Fire Extinguisher Tester,Portable Fire Extinguisher Fire Testing Equipment |
||

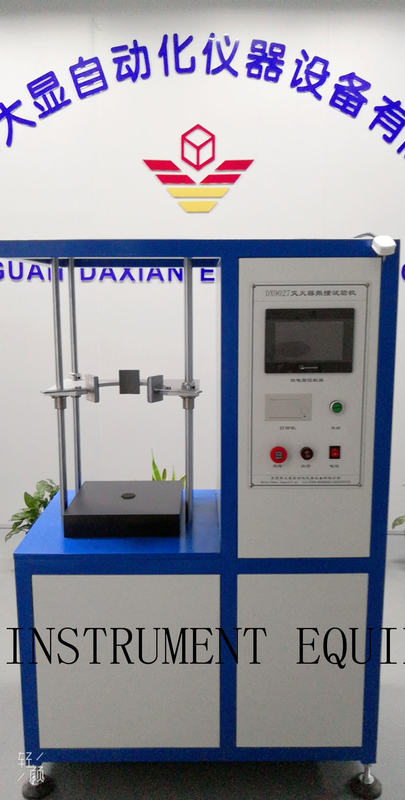

Fire fighting. Portable fire extinguishers. Performance and construction
Scope :
Mainly suitable for vibration test of portable fire extinguisher with 1kg~16kg.
Standards:
GB/T 4351.1-2005
ISO 7165
Test method:
After dry powder fire extinguishers weighing, placed in 20 ºC ± 5 ºC constant greenhouse environment keep out after 18 h or more time, will be a fire extinguisher in upright position and fixed on the instrument, the height of 15 mm at a 1 hz frequency to the horizontal plate in free fall.
Parameters:
| Impact height | 0-15mm (adjustable) |
| Number of hits | 0-1000 adjustable;Stop automatically after reaching the set number. |
| Impact floor | thick 60mm ±1mm, long 300mm±5mm, wide 300mm ±5mm |
| Maximum load | 50kg |
| Intake pressure | 0.1 ~ 0.2mpa |
| Station | 1 |
| Power supply | 220V, 50HZ, 0.5kw |
| Machine size | 750 x 500 x 1300mm |
| Impact frequency | 1Hz (1 time/second) |
