Building Materials Fire Testing Equipment For Heat Release Rate Test ISO5660-1

Fire Testing Equipment Building Materials Heat Release Rate Test Machine ISO5660-1

1, Equipment standard:

ISO5660-1:2015 Test Method for Heat Release Rate of Building Materials.

2, Scope of use:

The oxygen consumption calculated from the oxygen concentration in the gas stream of combustion products and the heat release rate of combustion products. The heat release rate of materials is also the most important parameter in the combustion performance of materials. Accurate measurement of the heat release rate of materials in the combustion process is extremely important for the prediction of fire hazards and fire retardant prevention treatment.

3, Operating conditions:

(1). Working environment temperature: 0 ℃ - 50 ℃
(2). Humidity of working environment:<80%
(3). Power supply: 380V ± 50%, 50Hz ± 2%

4,Main performance parameters:

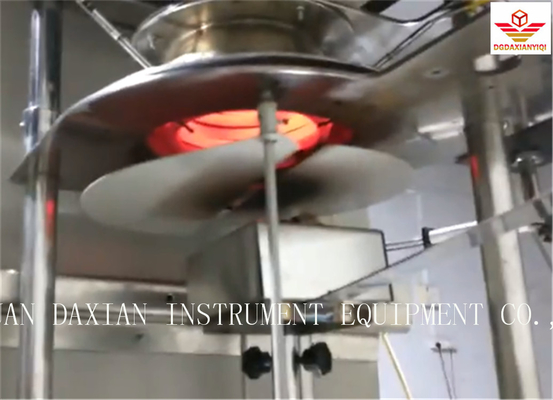

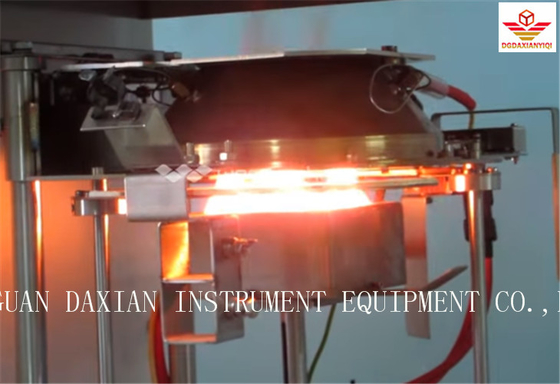

1. Radiation cone: heating power: 5Kv, radiation intensity: 100Kw/m2, equipped with three thermocouples to measure temperature.
2. Exhaust system: composed of centrifugal fan, smoke collecting hood, air inlet and exhaust pipe of fan and orifice flowmeter
Maximum placing amount of sample box: above 100mm * 100mm * 50mm.
3. Air displacement: 0.012m3/s~0.035m3/s (adjustable) 0.024m3/s Imported sensor, domestic controller
4. Timing value resolution: 1S error<1s/n

5. Oxygen analyzer: Siemens paramagnetic analyzer, measuring range: 0-25%,
6. Equipped with sampling pump and smoke filter.
7. Imported high-quality flow controller is adopted for gas flow
8. Ignition voltage: 220V, double electrodes, ensuring safety during test.
9. Smoke exhaust flow: the smoke exhaust fan adopts frequency conversion control, which can realize automatic regulation of smoke exhaust flow between 0.012m3/s and 0.035m3/s.
10. The equipment is controlled manually and automatically, and can be switched to manual mode for operation.
11. Exhaust system: variable frequency fan is used to control the exhaust flow, and automatic control is realized through microcomputer

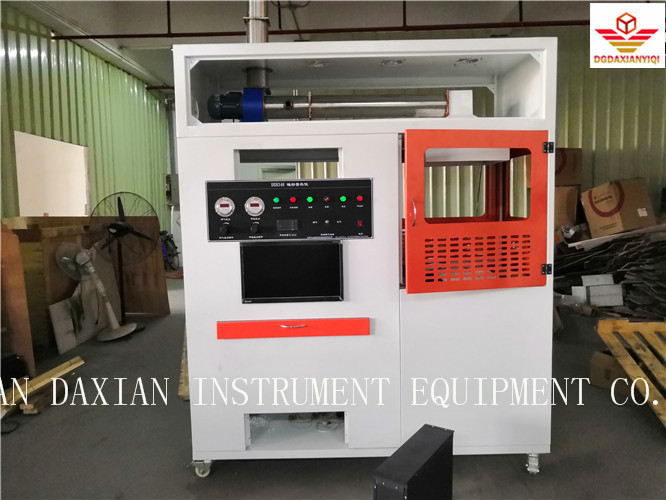

12. Boundary dimension: 2000mm high * 1600mm long * 700mm wide (plus box 1.9 * 0.9 * 2.2m)
13. Weight: 480kg

Heat Release Rate test mainly evaluates the following test items:

1. Flammability;
2. Flame propagation;
3. Smoke production;
4. Smoke toxicity;

ISO 5660-1 Sample Requirements:

The surface of the sample must be flat, and the sample must represent the actual product, preferably similar to the final product. A complete test requires 12 samples.
