Product Details:
|
| Machine Name: | Tracking And Errosion Index Apparatus | Usage: | Silicone Rubber Corrosion Resistance Testing Machine |
|---|---|---|---|
| Standards: | IEC60587-2007, ASTM D2303 | Power: | AC 220V/50HZ |
| Drop Height: | 30mm ~ 40mm Adjustable | Warranty: | 12 Months |
| High Light: | 50HZ Plastic Tracking Index Tester,Plastic 40mm Tracking Index Tester,D2303 Plastic Testing Equipment |
||

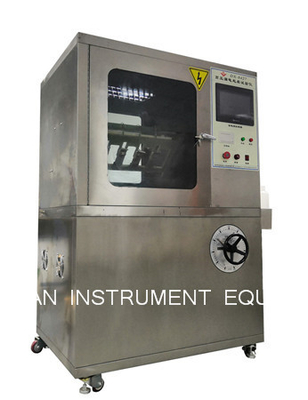

DX8427 Tracking and Errosion Index Apparatus
IEC60587 ASTMD2303 Electrical Tracking Mechanism
Model: DX8427
Technical Description:
The mechanism of electrical impingement on the epoxy resin insulating material using a high voltage of 3.5 kV AC with a frequency of 50 Hz causes the surface of the epoxy resin insulating material to burn.
Standard:
IEC60587-2007, ASTMD2303.
Parameters:
| Name | DX8427 High Voltage Tracking Index Tester |
|
Box |
≥ 0.5 cubic meters |
|
Drop size |
44 to 50 drops / cm3 |
|
Power supply |
AC 220V, 50Hz |
|
Drip height |
30mm ~ 40mm adjustable |
|
Electrode Pressure |
1.00N±0.05N |
Performance Index:
a. Instrument Dimensions: 1500L*1050W*2000H (mm);
b. Operationg Room Size: 1100L*900W*950H (mm);
c. Electrode: thickness: 0.5mm; material: stainless steel;
d. Gape of Electrade: 50.0mm±0.1；
e. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;
f. Testing Voltage power: 6000W;
g. Liquid Flow Range: 0.0016-1.5ml/min optional setting;
h. Dropping liquid Precision: 0.5%;
i. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
g. Testing time: 0-10 hours, setting freely;
