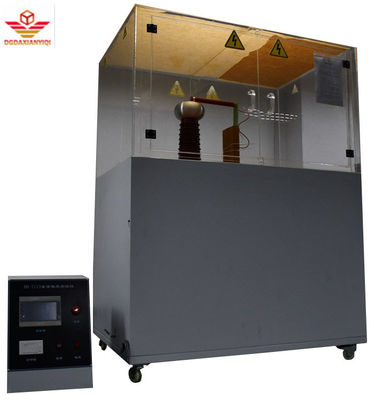

IEC 60243 Insulating Material Electrical Strength Testing Equipment

IEC 60243 Insulating Material Electrical Strength Testing Equipment
IEC 60243 Insulating Material Electrical Strength Testing Equipment
IEC 60243 Insulating Material Electrical Strength Testing Equipment IEC 60243 Insulating Material Electrical Strength Testing Equipment IEC 60243 Insulating Material Electrical Strength Testing Equipment IEC 60243 Insulating Material Electrical Strength Testing Equipment IEC 60243 Insulating Material Electrical Strength Testing Equipment

Large Image :  IEC 60243 Insulating Material Electrical Strength Testing Equipment

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: CE, SGS, ISO
Model Number: DX8388
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 30 sets per month

IEC 60243 Insulating Material Electrical Strength Testing Equipment

Description
Breakdown Voltage: 0~100kV Applicable: Insulating Materials
Booting Speed: 100,200,500,1000,2000,5000(KV/S) Accuracy: ≤ 2%
Methods Of Test: DC & AC Weight: 200kg
Dimension: L1400* W1040* H1500 Mm Transformer Capacity: 10 KVA
High Light:

100KV Strength Testing Equipment

,

IEC 60243 Strength Testing Equipment

,

100KV Insulating Material Testing Equipment

100KV  Electrical Strength of Insulating Materials Testing Equipment IEC 60243

Application:

This tester is suitable for measuring the breakdown strength and withstand voltage time of solid insulating materials such as plastic, film, resin, mica, ceramics, silica gel, glass, insulating paint, etc. in air or liquid medium, it can measure the breakdown strength and withstand voltage time under power frequency (48 ~ 62Hz) or corresponding DC voltage.

Standards:

IEC60243-1
IEC60243-2

Specifications:

Breakdown voltage 0~50kV
Booting speed 100,200,500,1000,2000,5000(KV/S)
Voltage measurement accuracy ≤ 2%
The leakage current selection 1~100 mA
Methods of test DC & AC
Supply power AC220V 50/60Hz
Dimension L 1400* W 1040* H 1500 mm
Weight 200kg



1. Booting speed control: Electrical automatic control

2. Methods of booting: Automatic program-controlled
3. Power Frequency: sine wave 50Hz/60HZ
4. Transformer capacity: 10 KVA
5. AC 0~50 KV (continuously adjustable)

IEC 60243 Insulating Material Electrical Strength Testing Equipment 0
