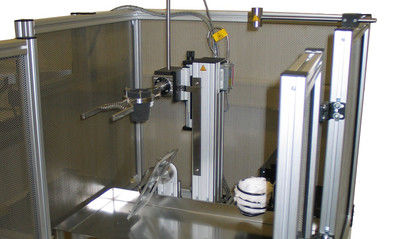

Product Details:
|
| Product Namee: | ISO9185 Protective Clothing Molten Metal Splash Test Equipment | Standard: | ISO9185, EN373 |
|---|---|---|---|
| Weight: | 100 Kg | Size: | 1300 X 1500 X 700 Mm (W X D X H) |
| Power Supply: | 3 ~ 400 VAC / 7.5 KVA | Warranty: | 12 Months |
| High Light: | Metal Resistance Tester EN373,ISO9185 Metal Resistance Tester,Protective Clothing Metal Resistance Tester |
||

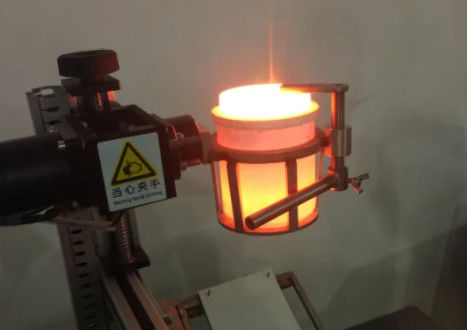

The furnace with induction coil and high frequency generator melts the metal. High-performance fiber optic dual-color pyrometers are used for temperature control and measurement of sputtering temperature. The temperature controller adjusts the temperature between 700°C and 1800°C. Stepper motor controls tilt speed and tilt angle. The cooling device uses the water flow connecting the inlet and outlet of the equipment for cooling.
Standard :
Testing apparatus for ISO9185.
Technical Parameters:
Sample:
- Fabric
Sensor:
- temperature
PVC sensor film :
- mass per unit area
Crucible:
- Height 97mm, a top diameter 80mm, bottom diameter 56mm, capacity ( brim full) 190ml
Power supply:
- 3 ~ 400 VAC / 7.5 kVA
Water source:
- cooling water
Dimensions:
- 1300 x 1500 x 700 mm (W x D x H)
Weight:
- 100 kg
Temperature probe:
- measuring molten metal temperature up to 1650℃, accuracy ±10℃
Specimen holder:
- rectangular pin frame, dimension ( 160±2)mm × (248±2) mm
Technical Parameters:
| Sample | Fabric |
| Sensor | temperature |
| Power supply | 3 ~ 400 VAC / 7.5 kVA |
| Specimen holder | ( 160±2)mm × (248±2) mm |
| Dimensions | 1300 x 1500 x 700 mm (W x D x H) |
| Weight | 100 kg |
