EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment

EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment
EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment

Large Image :  EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Daxian
Certification: EN ISO 6942
Model Number: DX8616

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 15 sets per month
Detailed Product Description
Product Namee: EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment Standard: EN ISO 6942
Weight: About 80kg Size: 600(L)×1600(W)×600(H)mm
Power Supply: 3-phase, 230V (400V)/50Hz, 6kW Warranty: 12 Months
High Light:

6kW Fire Testing Equipment

,

400V Fire Testing Equipment

EN ISO 6942 Protective Clothing Radiation Heat Exposure Tester Fire Testing Equipment

Product Description:

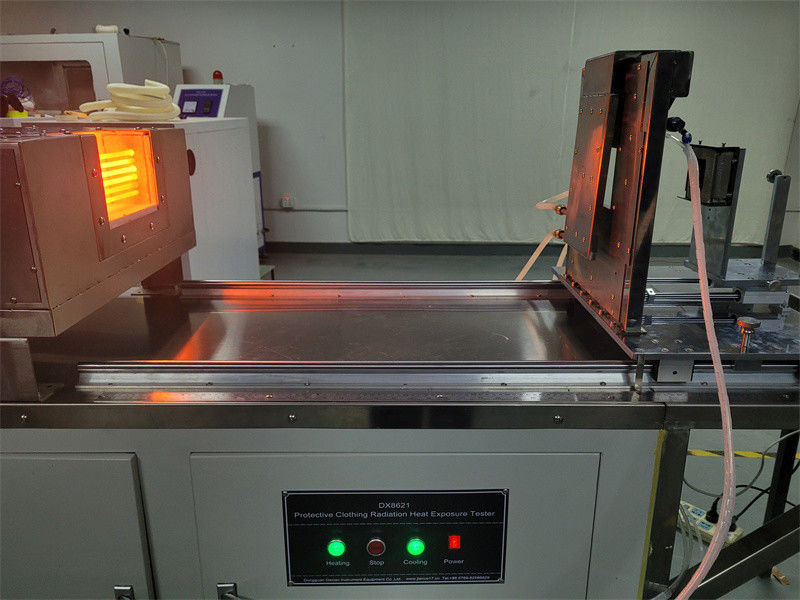

The instrument is suitable for determining the effect of heat transfer through materials or material components when protective equipment is exposed to radiant heat. The instrument consists of an Inox metal chassis, an armored cage for protection and heating source, 6 silicon carbide heating rods (1.100°C)-with automatic electronic control power compensation, etc. Due to the aging of the rod and changes in line voltage-installed on a mobile support with automatic positioning, the central unit is automatically calibrated from 5 to 80 kW/m2 and fully automatic measurement process (the temperature can be increased by 12, 24 and 30° in several times) C), the sample holder is used to test A and B using the calorimeter, the LCD display is used to adjust and display the results, and the built-in printer.

Standards:

EN ISO 6942: Protective clothing - Protection against heat and fire- method of test: evaluation of materials and material asssemblies when exposed to source of radiant heat


Test principle:

A specimen is exposed to a specific level of radiant heat for a certain period of time. After exposure, check the sample (single layer or multiple layers) for visual changes. Sample B is exposed to a specific level of radiant heat, and the time required for the temperature to rise by 12°C and 24°C in the calorimeter is recorded, which can be expressed as the radiant heat transfer index.



Specification:



Size
600(L)×1600(W)×600(H)mm
Weight
80kg
Power supply
3-phase, 230V (400V)/50Hz, 6kW
