Product Details:
|
| Standards: | ISO/FDIS 8341-1:1997 | Supply Power: | AC220V ± 10V, 50Hz |
|---|---|---|---|
| Degree Of Warming: | Room Temperature ~ 1150 °C / 4h | Control Mode: | PLC Touch Screen |
| The Power Supply: | AC220V ± 10V | Back Temperature: | 180 °C -220 °C |
| High Light: | thermal conductivity testing equipment,calorific value testing machine |
||

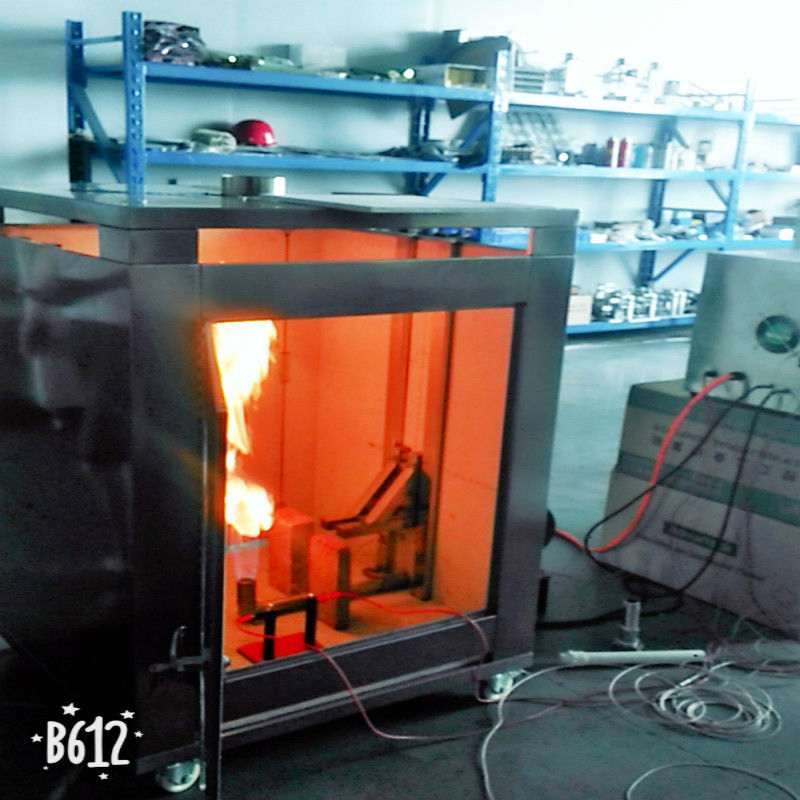

Steel Structure Fireproof Coating Sample Test Furnace , Construction Materials Fire Testing Equipment
Standards:
The tester satisfies the technical specifications and requirements specified in GB/T9978-2008, GB/T14907-2002 and ISO/ FDIS8341-1:1997, and is applicable to all kinds of steel structure fireproof coatings used indoors and outdoors in buildings (structures).
Technical parameters:
| The ambient temperature | room temperature ~ 40 °C; relative humidity: ≤ 75%. |
| The power supply | AC220V ± 10V50Hz |
| Back temperature | 180 °C -220 °C ± 2 °C |
| Test furnace size | (660 ± 10) mm * (660 ± 10) mm * (1080 ± 10) mm |
| Control box size | 510mm * 450mm * 400mm |
1. Working environment: no forced ventilation indoor.
2. Combustion gas source: natural gas, liquefied petroleum gas.
3. Degree of warming: room temperature ~ 1150 °C / 4h.
4. Digital display temperature.
5. Automatic control of time, temperature and temperature curve and record.
6. The air supply is automatically adjusted; pressure measurement range: 0-100Pa, accuracy 0.15Pa.
7. Sample size: 16 I-beam length 500, 7 pieces 1. 40b I-beam steel 3.
8. Microcomputer control, program temperature, test results format automatically print.
