Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988

Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988
Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988 Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988 Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988 Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988

Large Image :  Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: GB17927.1~2-2011,ISO8191-1 ~ 2:19 88, EN597-1 ~ 2:19 95
Model Number: DX8036B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 15 sets per month

Soft Furniture Spring Anti - Ignition Characteristic Testing Machine ISO8191-1 ~ 2 1988

Description
Standards: GB17927.1~2-2011,ISO8191-1 ~ 2:19 88, EN597-1 ~ 2:19 95 Power: AC 220V/50HZ
Warranty: 12 Months The Flow Rate: (45 ± 2) M/min
High Light:

vertical flammability chamber

,

textile flammability testing

ISO8191-1 ~ 2:1988 Soft Furniture Spring Soft Mattress and Sofa Anti - Ignition Characteristic Testing Machine



Scope:

This standard lays down a test method to assess the ignitability of mattresses, upholstered bed bases or mattress pads when subjected to a smouldering ignition cigarette.



Standards:

ISO8191-1 ~ 2:1988,GB17927.1~2-2011,ISO8191-1 ~ 2:19 88, EN597-1 ~ 2:19 95.



Parameters:

Atmosphere temperature 10~30℃
Relative humidity 15%~80%



Soft Furniture Spring Soft Mattress and Sofa Anti - Ignition Characteristic Testing Machine:
An overview of the equipment respectively uses the smoldering cigarette and the simulated match flame as the ignition source to conduct the anti-ignition test on the soft furniture, which simulates the anti-ignition performance of the soft furniture when it is impacted by the match flame and the cigarette end flame in actual use, so as to judge the anti-ignition performance of the soft furniture.The test box adopts heat insulation treatment, the outer layer uses stainless steel, middle and inner layer adds heat insulation material, the box body is beautiful and generous.
Scope of application: to evaluate the anti-ignition properties of soft furniture by simulating match flame source.It is mainly applicable to the test and evaluation of the anti-ignition property of soft mattress, furniture soft bag, sofa and other soft ladder furniture.



Technical parameters:
Simulated match flame

Ignition source system a stainless steel combustion tube with an external diameter of (8 ± 0.1mm) and an internal diameter of (6.5 ± 0.1mm) and a length of (200 ± 5mm);
Hose length (2.5 ~ 3mm), inner diameter (7 ± 1mm) shall be connected with stainless steel combustion tube
Flow control system including a flow meter, fine tuning valve, switch valve and pressure regulating valve
The flow is (452) m1/min, and the nominal output pressure provided by the system is 2.8kpa
Timing range 0-999s, which can display and record the time of reburning or overburning, fabric cracking time and test piece extinguishing time respectively
Test distance of igniter 20-80 adjustable, with automatic movement and evacuation of ignition mechanism
Flow measurement range 10~100m1/min


Cigarette lighting source:

Cigarettes Length 60 ± 5 mm
Cigarettes Diameter 8 ± 0.5 mm
Cigarettes Quality per unit length (0.6 ± 0.1) g/50mm
Cigarette burning time (12 ± 3) min/50mm

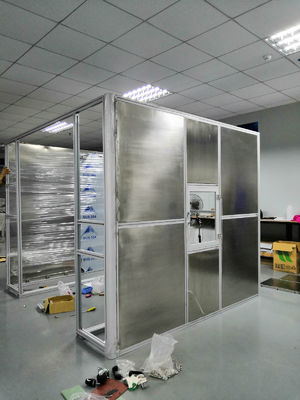

Laboratory 2.5 meters long, 2.2 meters wide, 2.5 meters high, including ventilation pipes.Made of stainless steel
Observation window a large observation window of tempered glass with SUS304 stainless steel surround
Fuel gas flow regulation the test gas flow rate is adjusted, which is 45 plus or minus 2mL/min
Timing 0-99.99h /m/s arbitrary setting


Control system:

Automatic ignition function high voltage electronic fire
Butane flowmeter 0~100m1/min
U-type pressure gauge 0~3kpa
Timer range 0~99.99 hours
Gas pressure gauge 0~ 0.1mpa, with a resolution of 0.01 MPa
Air supply butane gas with a purity of more than 95% (self-provided by the user)
Control box size 880mm (W) * 600mm (D) * 1550mm (H)
