UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine

UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine
UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine

Large Image :  UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: GB14048.4, GB/T14048.1, IEC60947-4-1-2000, IEC60947-1-1999
Model Number: DX8335
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation

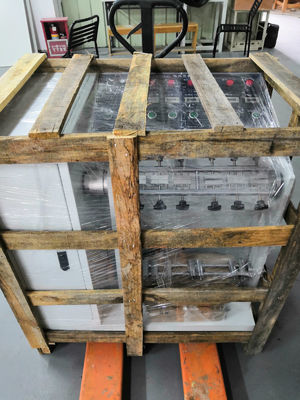

Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 sets per month

UL817 Wire Swing Durability Testing Equipment , Wire Testing Machine

Description
Warranty: 1 Year Product Name: AC Contactor Life Test Device
Dimentions: L1200*W900*H1600cm Standard: GB14048.4, GB/T14048.1, IEC60947-4-1-2000, IEC60947-1-1999
Power Supply: 220V±10% 50Hz Color: White
High Light:

vibration testing equipment

,

button life testing machine

Wire Swing Durability Testing Equipment , Wire Testing Machine



Introduction:

Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93. Wire bending testing machine is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation.



Standards:

Comply with GB2099, UL817, VDE standard for general test.



Parameter:

Grips

6 groups

Flexing angles

40 ° ,60°,90° adjustable

Flexing speed

10-60/min
Control system Digital with LCD screen
Counter 0-999999
Auto-counter 6, counted respectively
Load 50, 100, 200, 300, 500g six for each
Machine weight Approx 100kg
Power AC220V, 50HZ

Dimension(W×D×H)

86×51×81cm



Features:

- Six stations while working independently, respectively, counting, one line, the corresponding counter

Stop counting machine as usual test, improve testing efficiency;

- Six groups of nonslip, easy to damage materials specially designed handle, clamping products more convenient, fast;

- Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with power off memory function, convenient and practical;

- The Cabinet with electrostatic paint treatment, according to various standards of design, machine design is reasonable, Fastening structure, safe, stable and accurate;

- Speed knob adjustable, LCD display, set customers according to their requirements, the user-friendly design.
