Product Details:
|
| Working Voltage: | AC 220V±10V50Hz | Ambient Temperature: | Room Temperature ~ 40 °C |
|---|---|---|---|
| Relative Humidity: | ≤ 75% | ||
| High Light: | horizontal flammability tester,fire test chamber |
||

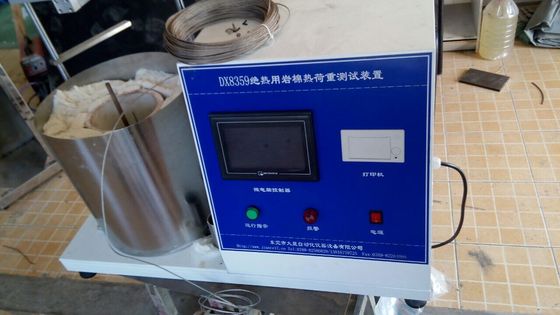

PLC Touch Screen Control Thermal Insulation Rock Wool Thermal Load Testing Equipment
Application:
Suitable for rock wool, slag wool and glass wool and products. Under a fixed load, the sample is heated at a certain heating rate to achieve the specified thickness shrinkage. Through calculation, the shrinkage temperature of the heat load is determined by interpolation.
Meet the standards:
in line with GB/T11835 standards.
Technical parameters
The heat load test device consists of a heating furnace, a heating vessel, and a temperature sensor.
Ambient temperature: room temperature ~ 40 °C relative humidity: ≤ 75%
Working voltage: AC 220V±10V50Hz
Heating power: 1000W
Zoom measurement range: room temperature -900°C
Heating rate: 5°C/min±0.3°C and 3°C/min±0.2°C can be set
The instrument uses a single computer, multi-point program to warm up
Heat source adopts hot plate type, safe and reliable, long service life
The instrument is equipped with a faceplate printer, which can print test results in time.
