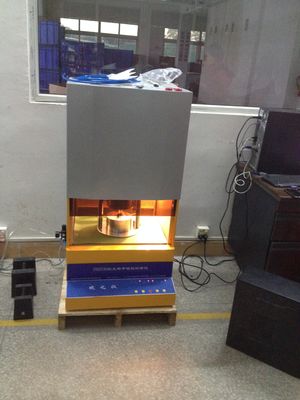

200 Degree Rotorless Vulcanometer , Rotorless Curing Testing Machine for ISO6502
Scope of application:
It is suitable for analysis and determination of scorch time, vulcanization time, vulcanization rate, viscoelasticity modulus, vulcanization flatness and other performance indicators of rubber vulcanization process. It is a national regulation for the development of new products, study of compound formulations and inspections. Product quality testing equipment.
Compliance with the standard: in line with GB/T16584 "Rubber - Determination of vulcanization characteristics with a rotorless vulcanometer" requirements, ISO6502 requirements and Italian standards T10, T30, T50, T60, T90 data.
Temperature control range: 0～200°C
Temperature fluctuation range: ±0.1°C
Temperature display resolution: 0.1°C
Heating time: about ≤10min at room temperature -200°C reach equilibrium
Time setting range: 2min--120min arbitrarily selected
Modular body temperature fluctuation: ≤±0.1°C%
Torque range: 0～20N.m
Swing frequency: 1.7Hz (100r.min-1)
Rotor swing amplitude: ±0.5° total amplitude ±1°
Power consumption: 800W
Mold cavity structure: Monsanto form
Report Content: ML, MH, ts1, ts2, t10, t30, t50, t70, t90, vulcanization curve, temperature curve
Executive Standard: ASTM D5289-95 ISO 6502: 1991 GB/T 16584-1996
Supply voltage: AC220V±10%50HZ
Overall dimensions: 640mm × 580mm × 1300mm
Net weight 210Kg
1. The instrument uses a true closed mold cavity, the same as the American Alpha (former Monsanto). Reproducibility and test data are comparable to alpha. It is in the leading position in the international industry.
2. The instrument is based on a large-scale database development platform. The temperature control device adopts software direct control and acquisition processing. This technology leads the international trend.
3, the instrument has statistics, analysis, storage, comparison and other functions. Humanized design, easy to operate.
