Product Details:
|
| Standard: | GB/T2406.2 ISO4589-2 | Material: | Stainless Steel |
|---|---|---|---|
| Working Pressure: | 0.1MPa | Measurement Range: | 0-100% |
| Burner Height: | 480mm | Burner Flow Rate: | (40 ± 2) Mm |
| High Light: | horizontal flammability tester,fire test chamber |
||

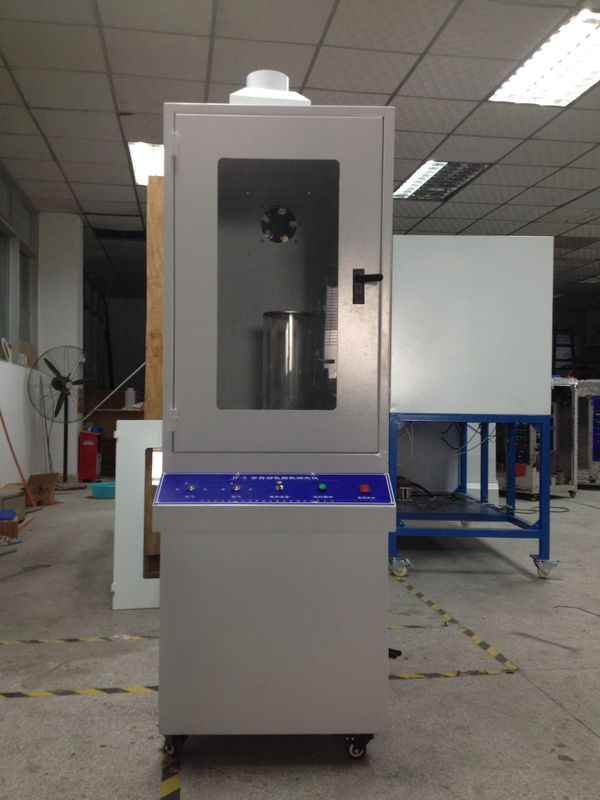

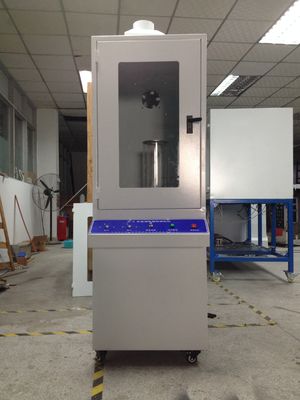

Automatical Oxygen Index Tester , LOI Testing Equipment for ISO4589-2 Standard
Application:
For specimen thickness less than 10.5mm upright self-supporting strip or sheet material. Also suitable for homogeneous solid materials, laminates or foams, and films.
Standard: GB/T2406.2 ISO4589-2 standard.
Technical parameters:
1. Working pressure: 0.1MPa
2. Oxygen concentration measurement range: 0-100%
3. Burner height: 480mm, internal diameter: 85mm
4. Limiter orifice at the top of the burner: ¢40mm
5. Burner flow rate: (40 ± 2) mm
6. O2, N2 gas temperature in combustion cylinder: 23±2°C
7. Computer control of gas flow: Automatically control O2, N2 ratio, automatically calculate oxygen concentration value, automatically find K value, automatically calculate standard deviation.
8. Resolution: 0.01%
9. Measurement accuracy: ±0.2%
